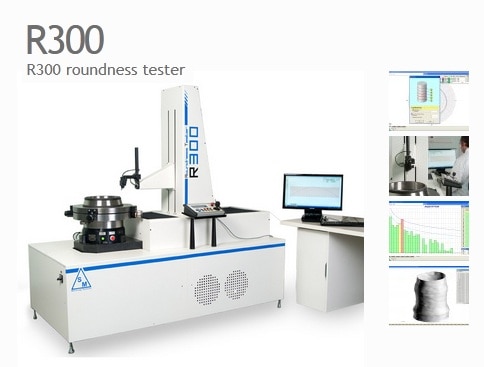

R300 roundness tester is one of the best devices worldwide for the characterization of surfaces, born from thirty years of experience boasted by SM in this field, it was specifically designed to measure bulky and heavy pieces, with utmost accuracy. R300 features 3, pneumostatically supported, metrological measurement and positioning axes that ensure fluent movements without frictions and remarkable sturdiness of the entire system. The main application of R300 consists in the characterization of large size bearings, where all those essential characteristics for the final quality of the product must be determined, among which roundness and race angles, which are measured by following the piece's profile with more axes working at the same time, thus generating a considerable number of measurements. CHARACTERISTICS: Pneumostatic plate Platform diameter: 450 mm Expansion diameter: 800 mm Maximum measureable diameter: 1000 mm Axial bearing capacity: 1200 kg Radial run-out (at plate level): ≤0,1 μm Speed: 0,5 – 3 rpm (measurement) 0 – 6 rpm (positioning) Friction: Pneumostatic due to manual rotation Centring range: ±5 mm Levelling range: ± 1° Resolution: 0,1° Pneumostatic R axis Useful traverse length: 500 mm Linearity: ≤ 0,5 μm su 500 mm Speed: 0,2 – 10 mm/s Resolution: 0,1 μm C axis (pneumostatic column) Useful traverse length: 500 mm Maximum height : 600 mm (from plate surface) Linearity error: ≤ 0,5 μm on 500 mm Speed : 0,5 – 15 mm/s Resolution: 0,1 μm Pick-up Measurement positioning: In three positions (horizontal, vertical, lateral) Measurement strenght : Internal/esternal 20 – 150 mN Measurement range : ±1000 μm Supplied pick-ups : N° 3 two-directional of lenght 80 - 150 – 240 mm Salbro Engineers represents SM Metrology Systems for their surface metrology products such as Roundness, Roughness, Contour / Profile measuring machines and accessories.
