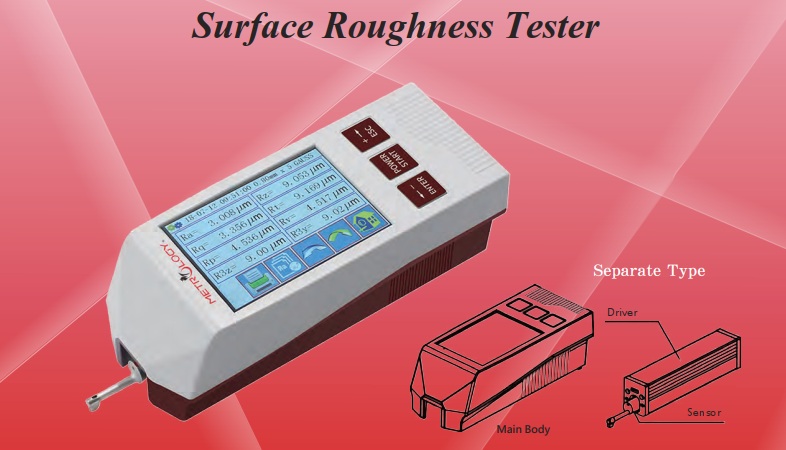

SRT-9000S is a high accuracy instrument for measuring surface roughness. It can be used on variety of machining parts and operates on various surfaces, not only flat but also outer cone, outer cylinder, curved, pinholes, grooves, recesses grooves and axle etc. SRT-9000S allows surface roughness measurement both on metal and non-metal workpieces. It is suitable for machining and manufacturing, quality control, inspection departments, especially for measurement on large and heavy work piece, assembly line on site. SRT-9000S roughness parameter is according to various national standards and ANSI B46.1, DIN 4768, JIS B601, ISO 4287 international standard. Features Operation promotion： 1) Composite structure of main display unit, driver unit and Sensor. Electromechanical integration design, small size, light weight, easy to operation. 2) The stylus drive unit can be stored within the main unit for normal measurement, or separated driver from the display unit by using the supplied cable which allows more flexible measurement in any orientation. 3) 3.5 inches color graphic TFT touch screen, wide viewing angle, excellent readability and an intuitive rich display, it includes a backlight to improve visibility in dark environments. 4) It can measure side walls, upwards and other directions, can be equipped with accessories such as height gauge and measuring stands to perform various posture adjustment and positioning measurements of complex work piece. Performance improvement： 1) Large capacity data storage, 100 item of raw data and curves can be stored. 2) Measuring range：X axis：17.5mm ; Z axis：320um，resolution：0.001um. 7) Built-in lithium-ion rechargeable battery and control circuit, high capacity, no memory effect, it works over 50 hours while fully charged, and there is remaining charge indicator, charging hint. 8) Real-time clock setting and display for easy data recording and storage with auto sleep, auto power off, power-saving features. 9) Reliable circuit and software design, preventing the motor stuck. 10) Optional : Extending & L type Extending Rod, Curved Surface, Small hole and Deep Groove Sensor. 11) With standard groove sersor, can meet more than 95% of measurement needs. Functional enhancement： 1) The main interface can display the values of two parameters, or you can convert the values you need to know with one click. 2) It can expand or reduce the curve display function such as evaluation curve etc.can also display the calculation result evaluation curve, load curve and amplitude distribution curve of each section. 3) 22 groups of parameters and profile display, support Bluetooth printing and mobile APP wireless operation. USB interface, SD card date store. 4) The instrument is equipped with data processing software, which can upload the measurement results to the computer for waveform analysis and printing.
