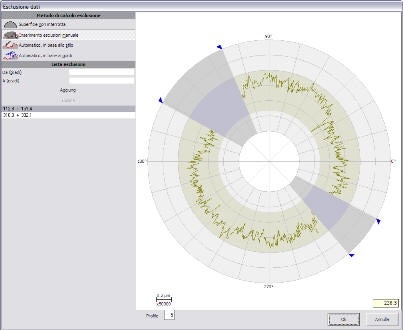

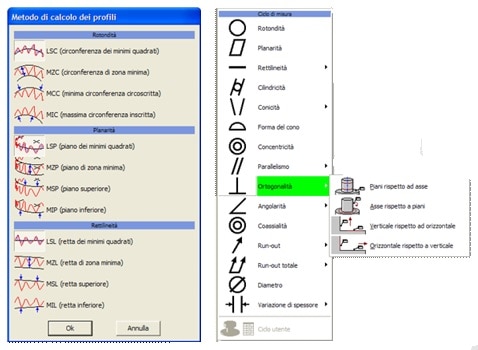

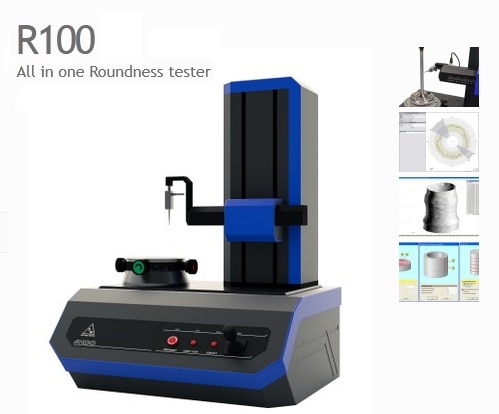

R100 roundness tester, based on an ''all in one'' logic, is immediately operative with just a few operations, and allows to characterize all circular geometries, also complex ones, present on a piece. The device is matched to Circom software that was conceived to be extremely user-friendly and easy to use, thus allowing to train an operator within a short period of time, reducing training and testing costs. The software allows the analysis of the following geometric tolerances: roundness, planarity, linearity, cylindricity, conicity, cone shape, concentricity, parallelism, squareness, angularity, coaxiality, run-ou, total run out, thickness variation. For complex surfaces where gaps are present, Circom is able to eliminate them automatically or the operator can intervene manually, removing inconsistent profile sections. Integrative packages can be added to the basic application, such as for example harmonic analysis that, through FFT algorithm, allows to analyze each single sinusoidal component of the measured profile, essential with regards to bearings. Axis of C plate: Plate diameter 160 mm Maximum load 200 N Maximum measured diameter 300 mm Centring and levelling: ± 3mm -- ± 2° Roundness error: < 0,08 μm Axis of Z column: Useful traverse lenght: 350 mm Motorized and measurement Linearity error on 400 mm: 0,8 μm Linearity error on 100 mm: 0,3 μm Measurement speed: 0,5-1-2 mm/s Positioning speed: 0-15 mm/s Axis of R arm: Useful traverse lenght: 115 mm Motorized, positioning Positioning speed: 0-15 mm/s Calculated parameters: roundness, planarity, linearity, cylindricity, conicity, cone shape, concentricity, parallelism, squareness, angularity, coaxiality, run-out, total run out, thickness variation. Pick-up: Two-directional with safety feature against shocks Measurement range: 0,6 mm Resolution: 0,001 µm Sizes: 586 x 615 x 815 mm (L x P x H) Weight: 105 kg Salbro Engineers represents SM Metrology Systems for their surface metrology products such as Roundness, Roughness, Contour / Profile measuring machines and accessories.
