Description
Product details

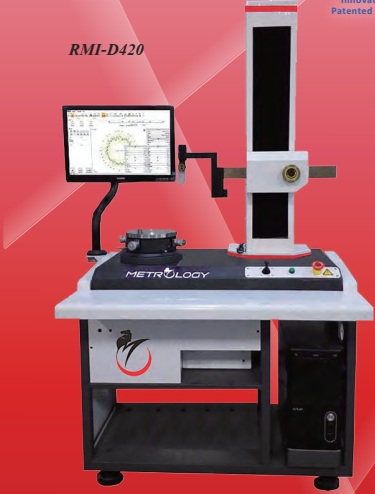

Roundness Introduction Roundness measuring instrument is benchmark against precision rotary center, the quantitative evaluation of the cross-section roundness is made by measuring the radius varitation of actual contour of workpiece in different angle position to rotary center by sensor. It is used to measure the cross-section roundness and coaxiality of internal rotation and external rotation and face runout, etc. Measurement Capability Evaluation item: Roundness, concentricity, coaxiality, parallelism, perpendicularity, flatness,Single radial runout, Single axial runout Analytical ability: Spectrum analysis, gap/burr automatically removed, waveform analysis. Roundness evaluation (4 methods): Minimum zone method (MZC), least square (LSC), minimum circum circle (MCC) and maximum inscribed circle (MIC). Roundness filtering gear: 1-15upr,1-50upr,1-150upr,1-250upr,1-500upr,15-100upr,15-500upr,2-15upr Filtering expression: Gaussian (ISO standard) Magnification: input range 1-100000 Roundness Measuring Instrument RMI-D420 Technical specifications: Rotary table Bearing Type : Gas bearing Rotation accuracy:(0.025+6H/10000)um Rotating speed: 6rpm Adjust table diameter : 180mm Table loading capacity : 15kg Rotation diameter : 420mm Max measure diameter : 250mm Column (Z-axis ) Column transverse travel : 320mm (electric) Max detection depth : 100mm (min inner diameter): 30mm) Horizontal arm (X-axis) Horizontal movement : 150mm (manual) Protrusion amount : 25mm Detector Acquisition device : Circle grating sensor Circumference of sampling points : 4096 points Sensor type : Inductive Sensor Sensor range : ±300μm Sensor resolution : 0.001μm *The above machine specifications can be customized and upgraded according to demand Software functions 1) The software supports Chinese, English, and supports XP, win7, win8, win10 operating systems. 2) The standard report has various evaluation methods, and the parameters in the test report can be added and deleted as needed. 3) With commutator module, it can evaluate single-chip true circle, adjacent segment difference and groove segment difference, and the measurement result can be deleted automatically or manually. 4) Software can assist the rotating spindle to adjust the center and level, improve efficiency and save time 5) Measurement results can choose ISO statistical report or ISO standard report. 6) Can perform spectrum analysis on contour graphics. For complete Catalogue, Contact Us.
