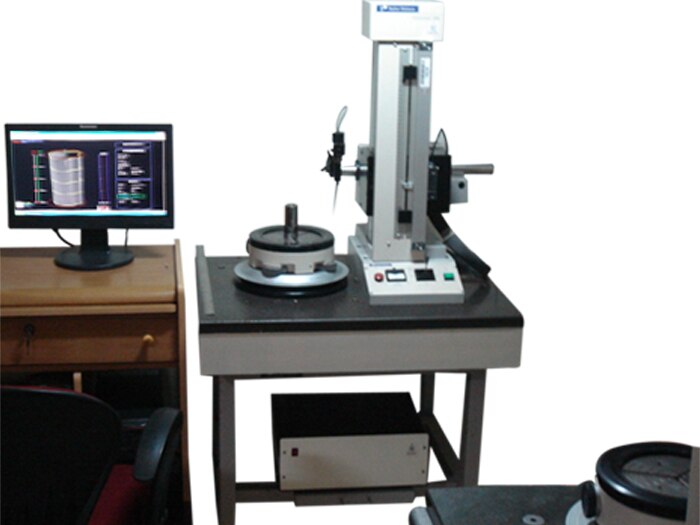

Note*-Machines displayed are Products/property of respective Manufactures. Machine Pictures used are to state compatibility of our Retrofit Package only. SeRound the Software Retrofit is user friendly, powerful and is performance driven. It is developed in-House at Salbro Engineers and has under gone years of field tests. It provides a through interactive user interface between the user and the Instrument. All Integrated to make one precise instrument to detect and assess the following results in Roundness, Concentricity, Eccentricity, Flatness (rotating 3D profile display), Cylindricity, Straightness, Parallelism, Squareness, Coaxiality and Radial Run-out, Axial Out, Harmonics. SeRound is proficient in Data acquisition, profile filtering, and assessment of the roundness parameters and graphical presentation of the results. It also performs instrument control. SeRound’s Setup and Measure window assists the user in accurately centering and leveling the job thus saving on time and improving productivity. The measuring process is initiated by the user by a mere click of a button and displaces measure completed’ massage at the end of measuring sequence. SeRound offers options to choose the method of calculation and assessment. Roundness and Flatness assessments are carried out on 4 internationally recognized reference circles (LSC, MIC, MCC and MZC). MZ Cylinder for Cylindricity analysis, LSL and MZ Lines for Straightness analysis., Operator is able to omit unwanted data and carry out analysis with remaining data. Measured data can be saved, retrieved and re-analyzed to any of the available conditions as desired by the user. A. MESUREMENT CAPACITY 1. Maximum diameter : 350 mm (13.8 in) optionally(also see Para 9) extendable to 500 mm (19.7 in)2. Maximum Weight : 20 kg (44.1 lb)3. Maximum Height of assessable Surface : 300mm (11.8 in)4. Worktable Moment Loading : 120 kgmm (10.4 lbin)5. Maximum Eccentricity : 25mm (0.98in) along the load line B. WORKTABLE AND SPINDLE 1. Worktable Diameter :190mm (7.5 in)2. Speed of Rotation : 6 rpm nominal, clockwise3. Range of Centering Nominal : ±1mm (±0.04in)4. Range of Leveling Nominal : ±4.1 mrad (±14 arc minutes)5. Height of neutral plane above Worktable : 20mm (0.79in)6. Roundness Limit of Error : Concentric Load 20kg (44.1 lb)(Departure from the least within 0.06 µm 0.0003µm/mmSquares circle at 6 rpm with height above worktable 0-50 u.p.r filter) (1.5 µin 0.3 µin/in)*7. Axial Error : 0.15µm (3.9 µin) maximum axial movement of worktable during one revolution. *These departures may be inwards and outwards C. VERTICAL STRAIGHTNESS UNIT 1. Measurement Length : 300 mm (11.8in),2. Accuracy of stop Measurement : 0.5mm (0.02in)3. Speed of Traverse (for set-up) : (1) Joystick slow speed0-3mm/s (0-0.12 in/s) for approx 70% of joystick travel. (2) Computer controlled <3 mm/sec variable.4. Straightness limit of Error : In the measuring plane: (Minimum zone straightness at 1µm over 300 mm (40µin 1mm/sec (0.04 in/sec) with over 11.8in) 8.0mm (0.3in) cut off low pass filter5. Positional Control Uncertainty : ±100µm (±0.004in) for one single move.6. Internal Capacity : 150mm (5.9in) For Straightness Limiting conditions, Maximum length of continuous Minimum diameter clearance Internal surface that can be assessed 115mm (4.5in) depth in bores larger thanØ25mm (Ø1in)7. For Roundness assessment Internal bore penetration : 150mm (5.9in), 115mm depth in bore of Ø25mm ***Internal penetration for other than ‘limiting condition’ depends on component geometry. D. RADIAL STRAIGHTNESS UNIT1. Traverse Length : 200mm (7.9in) This may be set for up to 50mm (1.97in) of travel past the spindle axis. Standard setting is 25mm past the spindle axis.2. Speed of Traverse : up to 2mm/sec3. Positional control uncertainty : ±50µm (±0.002in) for one single move.This is for both relative and absolute movements. E. GAUGE1. Standard Stylus Arm Length : 75mm (2.95”) effective length2. Range of Gauge movement with80mm Stylus Arm : 1.2mm (0.079in) Nominal F. ELECTRICAL SUPPLY Main Instrument Overall Weight : 279kg (615lbs) Overall Length : 760mm (29.9in) Overall Width : 760mm (29.9in) Overall Height : 1513mm (59.6in)
